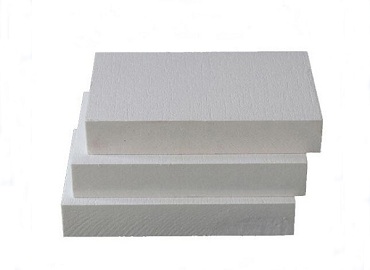

Ceramic Fiber Module
Ceramic fiber module also named ceramic fiber block,it is made from insulation fiber blanket folded and cut in professional manufacturing machine.We supply ceramic fiber module with anchor in various dimension,density for temperature grade 1260C and 1430C zirconia.
Color: White
Package: Carton,Pallet
Asbestos: Free
Lead time: 20-25 days
Overview of Ceramic Fiber Module

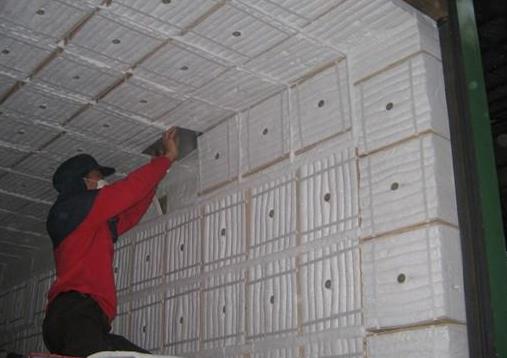

Ceramic fiber module is a kind of high temperature insulation material,it is light weight,flexible and easy for installation.These materials could be fixed on the steel plate anchor nail of the industrial kiln shell directly.It simplify and fasten kiln construction,improving furnace lining efficiency.
Because of the good performance,ceramic fiber module is widely used in ceramic,steel and iron,metallurgy,oil industry.
Classification of Ceramic Fiber Module
Size: Length 300,width 300,thickness 100-300mm
Temperature:1260 STD,1260 HP,1430 Zirconia
Density:190,200,220,240kg/m3
Type: folded blocks,vacuum formed block with various anchor systems.Anchor material is SS304 and SS310.

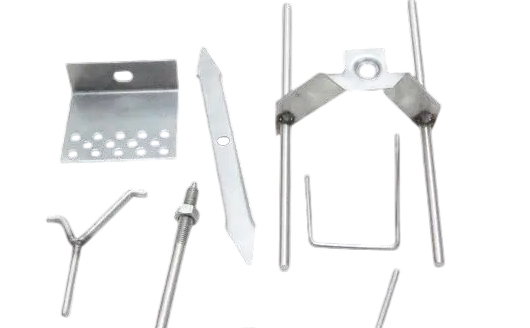

Anchors for Ceramic Fiber Module
Features
Low thermal conductivity,saving energy
Various types of anchors on the back of the modules allow the installation of the modules to be arranged side by side or mosaic floor way
Folded blankets will squeeze each other tightly in different directions after unbundling,so it is seamless after install
Easy to cut and shape
Application
As low thermal conductivity,lightweight saving energy refractory material,ceramic fiber module are widely used in following area.
Ceramic and Glass industry:insulation lining of shuttle kiln,tunnel kiln,roller kiln,kiln cars
Industrial heat treatment equipment：annealing furnace,tempering boiler,soaking pit.
Iron and Steel industry:transfer ladle insulation,soaking pit cover
Power Generation industry
Metallurgical and Foundry industry:heating furnace,roller hearth furnace and annealing furnace
Petrochemical industry:Reformer and Ethylene boiler
Others:Door back lining and sealing
How to Order Ceramic Fiber Module & Block?
If you need ceramic fiber module or need specific dimensions & shapes,please contact us to Take a Quote,we will offer more details to help.
Transportation: Cargo will be delivered by sea transportation.
Lead Time: Please contact s to confirm.
Physical and Chemical Indicators:
Item | 1260 STD | 1260 HP | 1430 Zirconia |
Al2O3(%) | 44 | 47 | 34 |
SiO2(%) | 52 | 54 | 50 |
Fe2O3+TiO2(%) | ≤1.0 | ≤0.5 | ≤0.5 |
ZrO2(%) | — | — | 15-17 |
Thermal Conductivity(w/m.k): | |||
400C | 0.090 | 0.101 | 0.118 |
500C | 0.119 | 0.120 | 0.149 |
600C | 0.152 | 0.175 | 0.172 |
Liner Shrinkage after Heating (%) | 1000Cx24h≤2.5 | 1100Cx24h≤2.5 | 14300Cx24h≤3.5 |
